SURPLUS PROCESS EQUIPMENT

LET US LIQUIDATE YOUR SURPLUS PROCESS PLANTS OR EQUIPMENT!

SURPLUS HEAT EXCHANGERS AND RADIATORS CURRENTLY AVAILABLE:

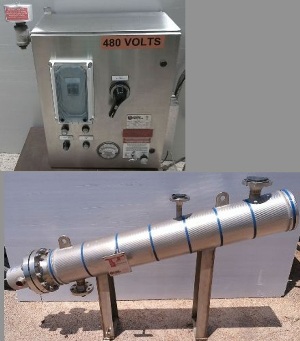

QTY. 2. GAUMER PROCESS CONTROL HEATER WITH CONTROL PANELS: HEATER = CERTIFIED BY GAUMER PROCESS TAG NO: E-7078, SERIAL NO: 15-C21685-B, YR BUILT: 2015, MAWP: 465 PSIG @ 500 DEG F, MAWP: -15 PSIG @ 500 DEG F, MDMT -110 DEG F @ MAWP 465 PSIG, GRAUMER HEATERS CONTROL SYSTEMS, CAT NO:ICC3S6F12N44G4ERKX, SERIAL NO: 15-C21685-B, TAG NO: E-7078, ICC / I: IMMERSION/CIRCULATION ELEMENT BUNDLE. SPECIFIES AN INDUSTRIAL FORCED-FLOW INLINE VESSEL DESIGN EQUIPPED WITH INTERNAL RESISTIVE HEATING BUNDLES. 3S / 3: 3-INCH NOMINALLY SIZED FLANGE OR PIPE VESSEL INLET/OUTLET CONNECTIONS. 6F: 600 LB. FLANGE RATING. DESIGNATES AN ASME HIGH-PRESSURE CARBON STEEL OR STAINLESS-STEEL STRUCTURAL CONNECTION FLANGE, CAPABLE OF SEALING HIGHLY PRESSURIZED PROCESS SYSTEMS.12: 12 HEATING ELEMENTS OR AN ACTIVE IMMERSION LENGTH MARKER (E.G., 12 INCHES/DECIMETERS) DETERMINING THE SPATIAL VOLUME OF THE HEATER VESSEL. N4: NEMA 4 TERMINAL ENCLOSURE. LIQUID-TIGHT, DUST-PROOF MOISTURE PROTECTION CASING DESIGNED SAFELY FOR STANDARD OUTDOOR OR HEAVY WASH-DOWN PLANT PROCESSING AREAS. 4G: 480 VOLT GRID CONFIGURATION / GROUNDED SYSTEM MATCHING INDUSTRIAL THREE-PHASE ENERGY SYSTEMS. 4ER: EXPLOSION-RESISTANT (CLASS I, DIV 1 / DIV 2) TERMINAL BOX OPTION. INCORPORATES SPECIALIZED STANDOFF HOUSINGS OR CERTIFIED FLAME-PROOF SEALS TO SAFELY OPERATE AROUND COMBUSTIBLE VAPORS.KX: TYPE K THERMOCOUPLE SENSORS. DENOTES THAT HIGH-PRECISION TYPE K INTERNAL PROCESS INSTRUMENTATION SENSORS ARE EMBEDDED DIRECTLY INTO THE ELEMENT SHEATH AND VESSEL DISCHARGE PORT TO TRACK OVERTEMPERATURE LIMITS AND FEEDBACK LOOPS VOLTS: 480, PHJ: 3, KW: 360, CLI ZONE 1, GR IBB+H2, CL I DIV 1, GR B,C,D, 160 DEG C, 75 MM OF ENCLOSURE, CAT IGC3S6F12N44G4ERKX, 480 VOLT, 3 PHASE, 36 KW, C21685-03 B CONTROL PANEL = GAUMER PROCESS CONTROL PANEL FOR HAZARDOUS LOCATION, MODEL: SCRP4Z-48A-4-IC-UL, SERIAL NO: C21685, TAG NO: E-7078, TYPE: Z-PURGE, TEMP CODE: T5, CLASS: 1, DIVISION: 2, GROUP: B,C AND D, VOLTS: 480, KW: 36, AMPS: 43, PH: 3, HERTZ: 60, PRESSURIZED ENCLOSURE AREA CLASSIFICATION: CLASS 1, DIV 2, GROUP A,B,C,D, PRESSURIZED TYPE: Z-PURGE, TEMPERATURE CODE: T5, MODEL 3003-LPS-CI-TYPE Y OR Z, 90 CUBIC FEET/2.5 CUBIC METER MAXIMUM ENCLOSURE VOLUME, TYPE Z: CLASS I, DIV 2 GROUPS A,B,C & D, ZONE 2, GROUP IIC TO NONHAZARDOUS, TYPE Y: CLASS I, DIVISION 1, GROUPS A,B,C & D/ ZONE 1, GROUP IIC TO DIVISION 2/ ZONE 2, INSIDE CONTROLLER: 1) SQUARE D NO: 8501KUDR12V53, SER: G, COIL: 24 VDC, 4) SQUARE D NO: 8501KU13V20, 120 V, 50/60 HZ, 1) ABSOLUTE PROCESS INSTRUMENTS INC, MODEL: API 4380 G, OPTIONS: WIDE-RANGING DC/DC ISOLATOR, 1) CLASS 2 TRANSFORMER NO: D 509366, L1144991G3 2013 UL LLC, 4) BUSS SAMI-17 BUSSMAN SAMI, NO: BM6031PQ, REPLACES M60030-1P0, 30 AMP, 600 VOLT, QUICK CON 20 AMP, 1) BREAKER NO: 9520150128105921, 1) SQUARE D NO: 8910DPA53, 65 AMP RES, 600 VOLT MAX, VOLTS: 115/230/460/575, FLA: 50, LRA: 300/300/250/250, 10 HP: 3/10/-/-,30 HP: -/15/30/30, 1) DWYER INST INC, PEPPERL+FUCHS ENCLOSURE PRESSURE GAUGE, 2) GAUMER PROCESS HEATERS SYSTEMS CONTROLS, SSRL48D100, AC51: 100 AMP 480 VOLT, AC53A: 30 AMP 480 VOLT, 4-32V, 1) PARTLOW CONTROLLER, MODEL: P6702, NO: 2110300, US NO: P1161110800, SERIAL NO: 768260010008. GAUMER PROCESS CONTROL PANEL CONFIGURED TO REGULATE ELECTRIC PROCESS HEATERS. INSTEAD OF BEING THE HEATER ITSELF, THIS PART NUMBER REPRESENTS THE SILICON CONTROLLED RECTIFIER (SCR) POWER CONTROL ENCLOSURE THAT MANAGES THE HEATER'S ELECTRICAL LOAD. . photo

QTY. 2. GRAHAM CORPORATION HELIFLOW HEAT EXCHANGER, MODEL: 15WS4C-14L, SERIAL NO: 15-89971-2, TAG NO: E-7076 CO2 HEATER SPARE, SHELL TEMP: 650 DEG F, TUBE TEMP: 650 DEG F, SHELL MAWP: FV+535 PSIG, TUBE MAWP: 2000 PSIG, MAWPS: FV+535, PSIG @ 650 DEG F, MAWPT: 2000 PSIG @ 650 DEG F, MDMT S: -20 DEG F, T: -110 DEG F, YEAR BUILT: 2015. THE GRAHAM CORPORATION HELIFLOW HEAT EXCHANGER (MODEL: 15WS4C-14L) IS A COMPACT, HIGHLY EFFICIENT, HELICALLY WOUND SHELL-AND-TUBE HEAT EXCHANGER. THIS SPECIFIC MODEL VARIANT UTILIZES A UNIQUE SPIRAL-COIL DESIGN THAT PROVIDES TRUE COUNTERCURRENT FLOW, MAXIMIZING HEAT TRANSFER EFFICIENCY UP TO 40% BETTER THAN STANDARD STRAIGHT-TUBE CONFIGURATIONS MODEL NOMENCLATURE BREAKDOWN: BASED ON STANDARD GRAHAM MANUFACTURING HELIFLOW MODEL DESIGNATIONS, THE ALPHANUMERIC STRING REPRESENTS THE PHYSICAL SIZE, PRESSURE CAPABILITIES, AND MATERIAL CHOICES: 15: DESIGNATES THE PHYSICAL FRAME SIZE AND SUPERFICIAL SURFACE AREA CLASSIFICATION (NOMINALLY AROUND 15-20 SQ. FT. DEPENDING ON COIL DENSITY). WS (WELDSEAL): INDICATES THE HIGH-PRESSURE WELDSEAL MODEL. INSTEAD OF A STANDARD BOLTED CASING JOINT, THE BASEPLATE IS DIRECTLY WELDED TO THE CASING. THIS CONFIGURATION ALLOWS THE SHELL SIDE TO HANDLE EXTREME PRESSURES UP TO 5,000 PSIG, AND THE TUBE SIDE UP TO 15,000 PSIG. 4C: POINTS TO THE INTERNAL TUBE CONFIGURATION AND CODE CLASSIFICATION (TYPICALLY 4 PARALLEL TUBES PER COIL BUNDLE USING A COMPACT ARCHIMEDEAN SPIRAL FORMAT). 14L: REPRESENTS THE SPECIFIC CONNECTION SIZE, ARRANGEMENT, AND LENGTH CHARACTERISTICS FOR THE PROCESS INLETS AND OUTLETS (OFTEN FEATURING LARGE-DIAMETER STANDARD NPT OR FLANGED FITTINGS). . photo

QTY. 1. GENMECH SUPER RADIATOR COILS NO: V306724,B01, NO: H03411-001 25 X 24 12R-12/120 FLUID COIL WITH SEALED END PLATES THIS FLUID COIL WAS BUILT USING COPPER TUBE, ALUMINUM FIN, AND COPPER HEADERS. THE HEADERS ARE OUTFITTED WITH VENTS AND DRAINS WHICH HELP REMOVE AIR DURING INSTALLATION AND MAINTENANCE. ADDITIONALLY, THIS FLUID COIL HAS SEALED END PLATES TO PREVENT LEAKAGE OF BOTH CONDENSATE AND AIR. MEASUREMENTS: 28" X 30" X 15 ½", COPPER 1 ¾" X 12" LONG THREADED INLET, AND COPPER 1 ¾" X 12" LONG THREADED OUTLET. photo

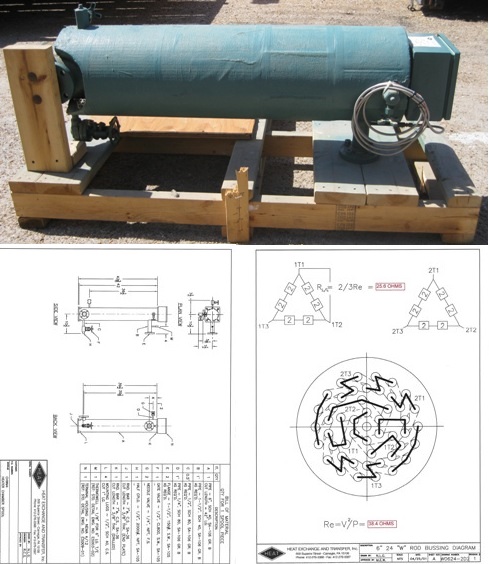

QTY. 1. HEAT EXCHANGE AND TRANSFER INC, PLATE HEATER, MODEL: PH0624-36-483, INSULATED PLATE HEATER SERIAL NO: 16-11085-1A, KW: 36, VOLTS: 480, PHASE: 3, HERTZ: 60, AMPS: 44, ELEC CLASS: NEMA 4, MAX TEMP: 450 DEG F, MAX PRESS: 100 PSIG, MEDIUM: MOBILTHERM 603. WITH 1-1/2" FLANGED 150 SWRF BOTTOM OUTLET AND 1-1/2" FLANGED 150 SWRF SIDE INLET. WITH TOP AND BOTTOM TAP VALVES. THIS IS A PLATE HEATER RATED FOR 36 KW ON 480 VOLT 3 PHASE SEE PHOTOS OF THE DRAWINGS AND BUSSING FOR THIS HEATER. THIS IS AN ELECTRIC HEATER. THIS HAS 24 U-BEND ELEMENTS WELDED TO A PLATED, AND THEN BUSSED IN THAT CONFIGURATION. THE SHEATH MATERIAL ON THESE WOULD BE 304 SS. YOU CAN REQUEST A BROCHURE FOR FLANGED HEATERS SO YOU CAN SEE WHAT THEY WOULD LOOK LIKE. THIS WOULD BE THE SAME THING, JUST WELDED TOGETHER INSTEAD OF A FLANGED CONNECTION. OUTSIDE STORAGE STARTING 3/14/2025. photo

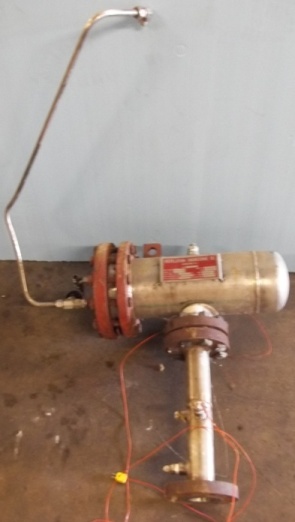

QTY. 1. DISTILLATION ENGINEERING CO. HEAT EXCHANGER MODEL: C-1, STAINLESS STEEL SHELL, S/N: 4890, TEST PRESSURE: 450 PSI, MAX WORKING PRESSURE: FV-300 PSI, HEAT EXCHANGE AREA: 5 SQ. FT., MAX TEMP: 500 DEG. F. photo

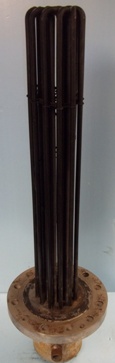

QTY. 1. GAUMER COMPANY INC. LOW WATT DENSITY HEATER, CAT. NO. 639F15N33HZYERK, NO. 90-6997, 230V, 3PH, 20KW, 1190. 15 WATTS PER SQUARE INCH, 6" 300 LB FLANGE, INCOLOY TUBES. photo

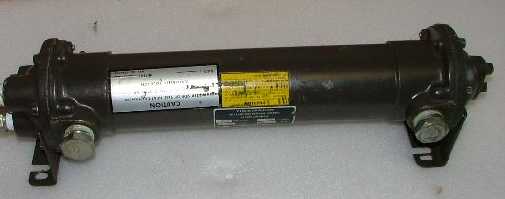

QTY. 1. THERMAL TRANSFER PRODUCTS HEAT EXCHANGER, MODEL: B-702-A4-F, OPERATING PRESSURE: SHELL: 250 P.S.I., TUBES: 150 P.S.I., TEMP. 350 DEG. F., S/N: 71097. photo

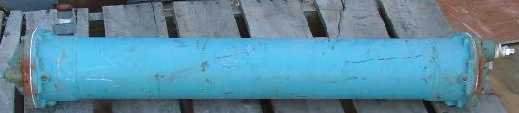

QTY. 1. SSCF HEAT EXCHANGER P/N: 5-160-03-024-005. photo

QTY. 1. AMERICAN STANDARD HEAT EXCHANGER P/N: BCFphoto

CONTACT BAMKO-SURPLUS
